OCD – xx/xxxH
① ② ③
① Orste “Three-in-one” Compact Dryer
② Hopper Capacity (L)
③ Dehumidifying Air Quantity (m3/hr)
H: Honeycomb Rotor Type
1. The OCD compact dryers can be equipped with up to four fully insulated drying bins to suit the required total throughput.
2. OCD compact dryers are the most effective way of conditioning hygroscopic plastic granules for processing and removing surface moisture.
3. The use of corrosion resistant stainless steel ensures a long lifetime and avoids contamination of the plastic granules.
4. Transparent window design for filter makes it convenient to monitor the condition of filter.
5. Material-contact surface of hopper is specially made of dust-free mirror-like stainless steel, it is suitable for the production of optical lens or food standard plastic products production.
6. High-density return air filter ensures no contamination to the material in the conveying of materials.
7. For models below OCD-160/120H, air-cooling methods is applied, which ensures low energy-saving and convenient for movement.

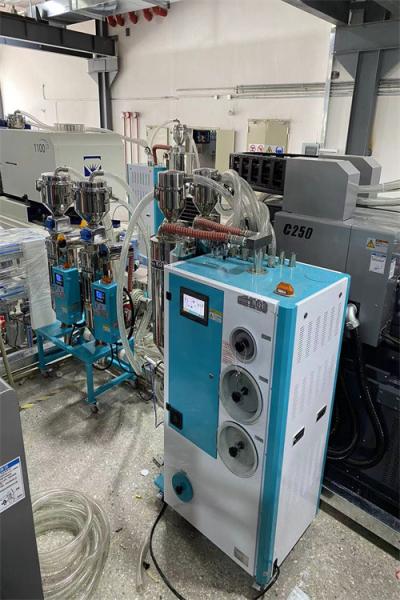

ORSTE “Optical” Dehumidifying Dryers provides the advantages of a consistent dew point and maximum energy efficiency. They combine the function of dehumidifying, drying and two-stage conveying into one compact machine, specified for the production of “optical class” and “food standard” products, such as lens, LGP, disposable lunch box etc. The quality desiccant honeycomb rotor provides continuous and constant low dew-point air which can be lower than -40 oC under ideal conditions.
| Model OCD- | 20/40H | 40/40H | 80/80H | 120/80H | 160/120H | 230/120H | 300/200H | 450/200H | 600/400H | 750/400H |
| Drying System |
| Hopper Capacity (kg) | 12 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 500 |
| Drying Heating Power (kw) | 4 | 4 | 4 | 4 | 6 | 6 | 12 | 12 | 18 | 18 |
| Drying Blower Power (kw) | 0.4 | 0.4 | 0.7 | 0.7 | 0.7 | 0.7 | 1.5 | 1.5 | 3.75 | 3.75 |
| Dehumidifying System |
| Dehumidifying Air Quantity (m3/hr) | 40 | 40 | 80 | 80 | 120 | 120 | 200 | 200 | 400 | 400 |
| Regenerative Heater Power (kw) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 5.4 | 5.4 | 7.2 | 7.2 |
| Regenerative Blower Power (kw) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.75 | 0.75 |
| Feeding System |
| Feeding Blower Power(kw) | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
| Dia. of Material Pipe (inch) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Dia. of Return Air Pipe (inch) | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 |
| OMH (L) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 12 | 12 | 12 | 12 | 30 |
| OPH (L) | 3 | 3 | 3 | 3 | 3 | 7.5 | 7.5 | 7.5 | 12 | 12 |
| Dimension | H (mm) | 1490 | 1870 | 2010 | 2100 | 2260 | 2370 | 2370 | 2410 | 2520 | 2570 |
| W (mm) | 1000 | 1050 | 1180 | 1180 | 1340 | 1340 | 1440 | 1460 | 1645 | 1645 |
| D (mm) | 730 | 730 | 780 | 780 | 810 | 810 | 940 | 940 | 1145 | 1145 |
| Weight (kg) | 280 | 295 | 325 | 340 | 505 | 515 | 570 | 610 | 650 | 700 |
Inner Structure of OCD-H, every parts are well arranged in the machine, easy and convenient for parts replacement in future maintenance.
Material Distributor makes it is easy for loading materials to several injection machines, thus greatly lowers the cost of production.
Company Products Advantages
With many years of experience and accumulation in scientific researching and designing of our five series products: Dehumidifying and Drying, Feeding and Conveying, Dosing and Mixing, Heating and Cooling, Granulating and Recycling, and upholding the principle of “Focusing on Product Details, Pursuing Excellent Quality”, “Perfect Product Comes From Endless Innovation”.
ORSTE spares no efforts to innovate its technology while improving product quality, and now it is an industry leader with its mature technology, professional research and development ability, quick marketing capability and qualified site construction team in peripheral equipment of plastic molding.
Company’s Main Products
ORSTE’s large scale Central Material Conveying System and cooling water circulation system including three major systems of centralized raw material drying, water temperature control and metering & mixing, are extensively applied in plastic injection molding industry.
The main products of the company are a series of high-tech products including Desiccant Honeycomb Dehumidifiers, Hopper Dryers, “Three-in-one” Compact Dryers, Auto / Semi-auto Weighing & Packing Machine (for plastic 25kg packages), Auto-loaders, Mold Temperature Controllers, Industrial Chillers, Mixers and Blenders, Masterbatch Dosers, Granulators, and Vibrating Screens.
Exemption Clause
The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).
ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:
1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.
2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.
3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.
4. Employing consumables or oil media that are not appointed by ORSTE.
